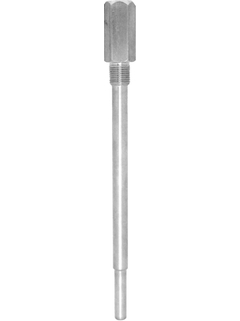

Omnigrad TA562
Barstock thermowell

Made of drilled barstock material. Mainly used in heavy duty or general purpose applications.

  • ©Endress+Hauser

Due to the challenging process conditions by heavy duty applications the load capacity of a thermowell must be calculated exactly. Dye penetration tests, ultrasound test, helium leakage test, pressure endurance test as well as various, non-destructive material tests prove the quality of materials and processing.

Benefits

  • The thermowell stem shape can be straight or reduced for fast response time

  • Extension, immersion length and reduced length as well as the bar dimensions can be chosen according to process requirements

  • Different grades of surface finishing are also available

  • The process connections are threaded: ½"NPT, ¾"NPT, G½" or M20x1.5

  • A wide choice of standard materials is available

  • Special versions can be manufactured according to specification

Field of application

TA562 is designed for use with resistance and thermocouple thermometers mainly in heavy duty applications.
