Radar measurement

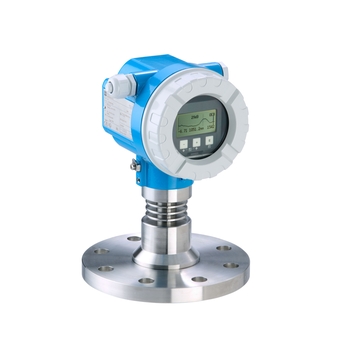

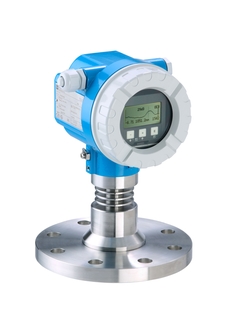

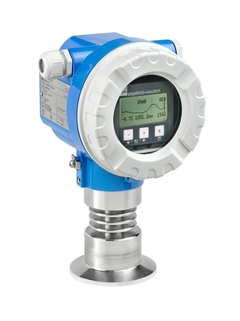

Micropilot FMR245

Highly resistant up to +200°C and easy to clean

  • ©Endress+Hauser
  • ©Endress+Hauser

The Micropilot FMR245 offers cost-effective 4 to 20mA 2-wire technology and is suitable for hazardous locations. The FMR245 is used for continuous, non-contact level measurement of liquids, pastes, slurries, and solids. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.

Benefits

  • Non-contact measurement: Measurement is almost independent from product properties

  • 2-wire technology, low price: A real alternative to differential pressure, floats and displacers.

    2-wire technology reduces wiring costs and allows easy implementation into existing systems

  • Easy commissioning, documentation and diagnostics via Endress+Hauser operating software

  • Easy on-site operation via menu-driven alphanumeric display

  • Used for level monitoring (MIN, MAX) up to SIL 2 as per IEC 61508/ IEC 61511-1

  • HART or PROFIBUS PA respectively FOUNDATION Fieldbus protocol

  • Option: Gastight feedthrough to improve the process safety

Field of application

The Micropilot M is used for continuous, non-contact level measurement of liquids, pastes, slurries and solids. The measurement is not affected by changing media, temperature changes, gas blankets or vapors. The FMR245 is highly resistant up to 200°C (392°F) and easy to clean.

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

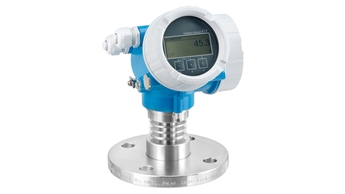

Successor: Micropilot FMR52
