Radiometric
Level and density measurement
Gammapilot FMG60

Compact transmitter for point level detection, continuous level, interface and density measurement

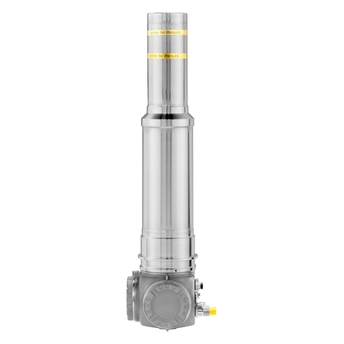

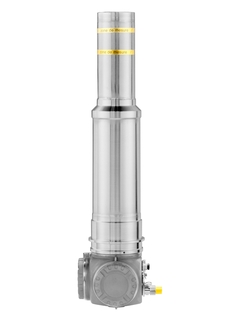

  • Gammapilot FMG60 stainless steel housing ©Endress+Hauser

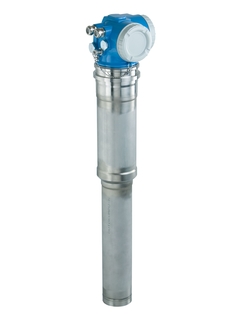

  • Gammapilot FMG60 aluminum housing ©Endress+Hauser
  • Radiometric measuring principle

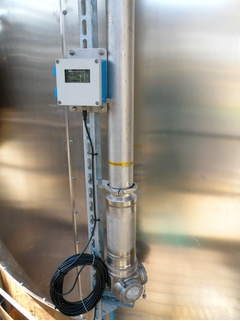

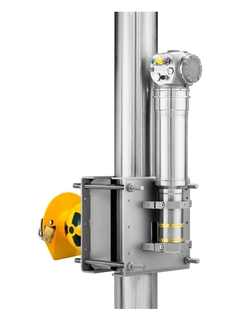

  • Gammapilot FMG60 application ©Endress+Hauser
  • Gammapilot FMG60 application ©Endress+Hauser

The Gammapilot FMG60 compact transmitter is made for non-contact point level detection, continuous level, interface and density measurement in liquids, solids, suspensions or sludges. The variable transmitter concept with NaJ crystal or plastic scintillators in different lengths guarantees optimum adaptation to individual applications. The transmitter contains a scintillator, photomultiplier and evaluation unit.

Benefits

  • Multifunctional compact transmitter: One instrument for all measuring tasks which results in cost savings in spare parts and maintenance

  • SIL2/3 approval in accordance with IEC 61508 for point level detection

  • Highest availability, reliability and safety, even for extreme process and ambient conditions

  • Highest sensitivity and accuracy at lowest dose rates (ALARA principle)

  • Aluminium or stainless steel housing 316L for heavy-duty applications

  • 4 to 20mA output for simple plant integration

Field of application

For liquids, solids, suspensions or sludges etc. Extreme measuring conditions, e.g. corrosiveness, toxicity, abrasion for all kinds of process vessels, e.g. reactors, autoclaves, separators, acid tanks, mixers, cyclones, cupola furnaces. Also for applications in food processing industry without additional requirements or approvals.

  • Temperature: No limitation (non-invasive)

  • Pressure: No limitation (non-invasive)

  • International explosion protection certificates, overfill prevention WHG

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

Predecessor: Detector DG57, FMG573S, GAMMASILOMETER FMG573Z, GAMMASILOMETER FMG671, FMG671P, GAMMAPILOT FTG671

Accessories, with links to our online product configurator

Basic device - mounting accessory FGH60, wall/pipe

Basic device - Clamping device density measurement FHG61

Basic device - Measuring path density measurement FHG62
