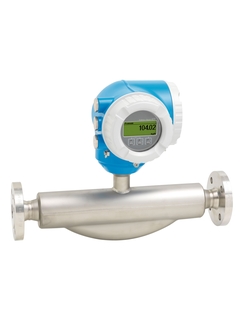

Proline Promass F 300
Coriolis flowmeter
The flowmeter with premium accuracy, robustness and a compact, easily accessible transmitter
-
©Endress+Hauser
Proline Promass F 300 for the chemical industry
-
©Endress+Hauser
Proline Promass F 300 for the chemical industry (NAMUR)
-
©Endress+Hauser
Proline Promass F 300 for the chemical industry
-
©Endress+Hauser
Proline Promass F 300 for the chemical industry
-
©Endress+Hauser
Proline Promass F 300 for the food & beverages and life sciences industries
-
©Endress+Hauser
Proline Promass F 300 for the chemical industry
.jpg)
.jpg)
.jpg)
Promass F has a long-standing reputation as a highly accurate sensor. Immune to fluctuating and harsh environments it is suited for the broadest range of applications. With its compact transmitter Promass F 300 offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology ensures compliance and process safety at all times.
Benefits
Highest process safety – immune to fluctuating and harsh environments
Fewer process measuring points – multivariable measurement (flow, density, temperature)
Space-saving installation – no in/outlet run needs
Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses
Reduced complexity and variety – freely configurable I/O functionality
Integrated verification – Heartbeat Technology
Field of application
Measuring principle operates independently of physical fluid properties such as viscosity or density
Highest measurement performance for liquids and gases under varying, demanding process conditions.
Device properties
Mass flow: measured error ±0.05 % (PremiumCal)
Medium temperature: -196 to 350 °C (-320 to 662 °F)
Nominal diameter: DN 8 to 250 (3/8 to 10")
Compact dual-compartment housing with up to 3 I/Os
Backlit display with touch control and WLAN access
Remote display available
Features and specifications
Documents / Manuals / Software
Accessories / Spare parts
Predecessor / Successor
Predecessor: Promass 80F, Promass 83F, Promass 84F
