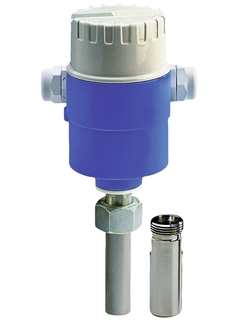

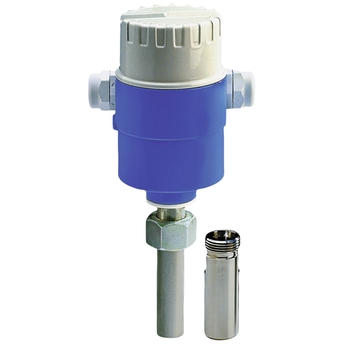

Magphant
Electromagnetic flowmeter
The cost-effective limit switch for reliable and repeatable flow monitoring
.jpg)
Magphant is the compact, universally usable limit switch with high repeatability for water applications in Utilities. The measuring device for reliable and cost-effective flow monitoring offers in addition to safe operation an easy use.
Benefits
High plant availability – reliable flow information
Energy-saving flow measurement – no pressure loss due to cross-section constriction
Maintenance-free – no moving parts
Process safety – reliable monitoring even with empty piping and device self-monitoring
Product safety – integrated testing to check correct functioning of the electronics
Easy operation – potentiometer setting of full-scale value
Field of application
The measuring principle is virtually independent of pressure, density, temperature and viscosity
Universally usable for all water applications in Utilities.
Device properties
Compact, space-saving design
Nominal diameter: DN 15 to 2000 (1/2 to 80")
Applicable for steel or plastic pipes
Switch-point setting via rotary switch
Current output and relay output
ATEX, FM, CSA
Features and specifications
Documents / Manuals / Software
Accessories / Spare parts
Predecessor / Successor
Predecessor: DI12, DTI120, DTI130

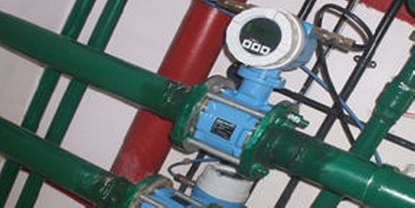

.jpg "Building automation through Promag D")
