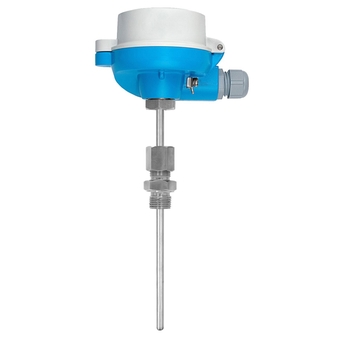

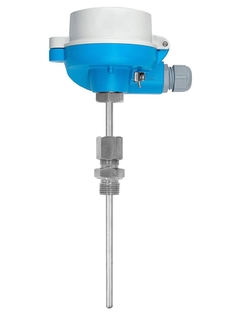

Omnigrad T TR24
Modular RTD thermometer
Comprehensive and common temperature measurement technology for almost all branches of industry
The high modular and robust thermometer finds its use in several applications in almost all industries. An optional head transmitter, with all common communication protocols, makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. A variety of process connections, dimensions and materials offer flexible application possibilities.
Benefits
High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths
High degree of insert compatibility and design as per DIN 43772
Fast response time with reduced tip form
Types of protection for use in hazardous locations: Intrinsic safety (Ex ia), non-sparking (Ex nA)
Head transmitter with easy selection: Analog output 4 to 20 mA, HART®, PROFIBUS® PA or FOUNDATION Fieldbus™
Field of application
Universal range of application
Measuring range: -200 to +600 °C (-328 to 1112 °F)
Pressure range up to 50 bar (725 psi)
Degree of protection: up to IP68
Features and specifications
Documents / Manuals / Software
Accessories / Spare parts
Predecessor / Successor
Predecessor: Omnigrad M TST42, TST420
