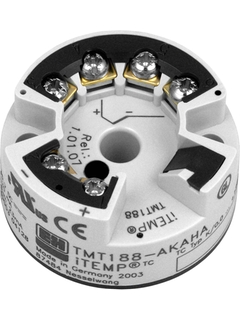

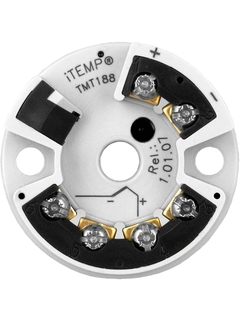

iTEMP TMT188
Temperature head transmitter
Transformation of the sensor signal into a stable and standardized output signal for all industries
The transmitter is designed for the transformation of an RTD Pt100 sensor signal in a fixed measuring range. The standardized output signal used for process measurement is a 4 to 20 mA signal. This means fast, easy and cost-saving temperature measuring as well as reliable and precise measured values for for a wide range of industry applications.
Benefits
High accuracy in complete ambient temperature range
Failure information when sensor breaks or short circuits as per NAMUR NE 43
EMC as per NAMUR NE 21, CE
Ex approval: ATEX Ex ia and dust zone 22 in compliance with EN 50281-1; FM IS; CSA IS
UL recognized component to UL 3111-1
Ship building approval GL
Galvanic isolation
Field of application
Fixed range temperature head transmitter for converting a TC input signal into a 4 to 20 mA analog output signal
Input: Thermocouple (TC)
Features and specifications
Documents / Manuals / Software
Accessories / Spare parts
Predecessor / Successor
Predecessor: TMC134, TMC138
