Capacitance
Level measurement
Liquicap FMI52
For continuous level and interface measurement in liquids - for large measuring ranges

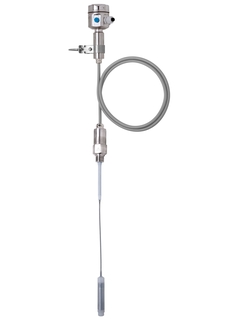

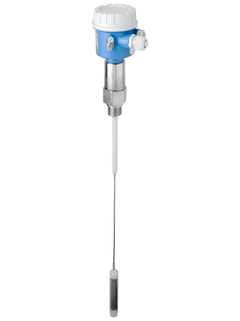

Liquicap FMI52 is a reliable fully insulated rope probe for continuous level monitoring in liquids, particularly in small tanks, build-up forming media and extremely high temperatures - especially for large measuring ranges. The measurement is independent of the dielectric constant (dc). Used in conjunction with Fieldgate FXA320 (remote measured value interrogation using Internet technology), Liquicap is an ideal solution for Inventory Management Solutions.
Benefits
Use also in safety systems requiring functional safety to SIL2 in accordance with IEC 61508
Reliable and universal application thanks to wide range of certificates and approvals
No calibration necessary (factory preconfiguration). No calibration necessary for media with a conductivity of 100μS/cm and higher
Material in contact with the process made of corrosion-resistant material
Menu-guided local configuration via plain text display (optional)
Two-stage overvoltage protection
Field of application
Device is independent of the dielectric constant (dc) as of a liquid conductivity of 100μS/cm and allows measurement of various liquids without the need for recalibration.
Process connections: Flanges and threads
Process pressure: Vacuum to +100bar (vacuum to 1,450psi)
Measuring range: 0.42 to 10.0m (1.38 to 33ft)
Temperature: -80 to +200°C (-112 to +392°F)
International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates, marine approvals
Features and specifications
Documents / Manuals / Software
Accessories / Spare parts
Predecessor / Successor
Predecessor: Double rod probe 11304Z, Multicap DC21, Multicap DC21AN, Multicap DC21AS, Multicap DC21EN, Multicap DC21ES, Multicap T DC21TAN, Multicap T DC21TAS, Multicap T DC21TEN, Multicap T DC21TES, DC26, DC26AN, DC26AS, DC26EN, DC26ES, DC26TAN, DC26TAS, DC26TEN, DC26TES, Silometer FMC420, Float Gauge LTC2230, T6667
