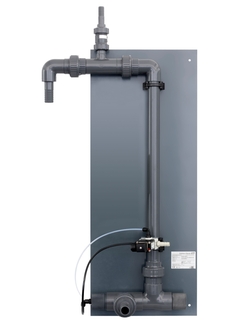

Liquiline System CAT810 - Sample preparation system for pressurized pipes and outlets

Sample preparation
Liquiline System CAT810

Self-cleaning backflush filter for sampling from pressurized pipes and outlets

CAT810
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

Specs at a glance

  • Process temperature

    4 to 40 °C (39 to 104 °F)

  • Process pressure

    1.5 to 4.0 bar (21.76 to 58.01 psi)
    For optional automatic cleaning:
    2.0 to 5.0 bar (29.0 to 72.5 psi); but at least 0.5 bar (7.3 psi) > process pressure

Field of application

Liquiline System CAT810 provides filtrate for continuous online monitoring of municipal and industrial wastewater and industrial processes. Its self-cleaning crossflow filter avoids filter blocking, thus increasing your process safety. Thanks to a minimized dead volume, it reflects changes in your process promptly and shortens the response time of your downstream measuring devices.

Liquiline System CAT810 is designed for:

  • Outlets of municipal and industrial wastewater treatment plants

  • Collection of aqueous samples from pressurized pipes in industrial processes

Benefits

  • Long maintenance intervals due to automatic back-flush function

  • Save costs through tool-free maintenance and easy replacement of filter elements

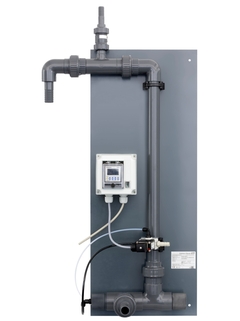

  • Control via the user-friendly Liquiline System analyzer for perfect synchronization of the measuring point or timer-controlled operation

  • Various mounting options for optimum fit to the application

  • Short response time of downstream measuring devices thanks to low dead volume
