Guided radar measurement
Time-of-Flight
Levelflex FMP50

For all basic level applications in liquids

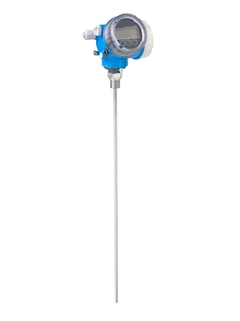

  • Levelflex FMP50 ©Endress+Hauser
  • Time-of-Flight measuring principle

  • Commissioning movie for Levelflex FMP5x guided radar and Micropilot FMR5x free space radar

  • Unique HistoROM data management concept for safe level measurement

  • Continuous adapting algorithms offering safe level measurement due to Multi-Echo Tracking

  • Multi-Echo Tracking with Tank Trace marks and traces all echoes signals, not only the level signal - guaranteeing safe measurement at any time

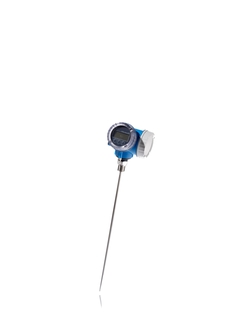

  • Levelflex FMP50 ©Endress+Hauser

Levelflex FMP50 is the instrument for basic applications in liquids which do not place high demands on temperature and pressure ranges or chemical resistance. Particularly in basic supply or storage applications as well as utility processes FMP50 is the best choice. Levelflex FMP50 guided radar is used for continuous level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.

Benefits

  • Reliable measurement even for changing product and process conditions

  • HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

  • Highest reliability due to new Multi-Echo Tracking evaluation

  • Hardware and software developed according to IEC 61508 up to SIL3

  • Seamless integration into control or asset management systems

  • Intuitive, menu-guided operation concept (on-site or via the control system) in national languages reduces costs for training, maintenance and operation

  • World's easiest proof test for SIL and WHG saves time and costs

Field of application

Version with rod or rope probe.

  • Process connections: Thread or adapter flange

  • Temperature: -20 to +80°C (-4 to +176°F)

  • Pressure: -1 to +6bar (-14.5 to +87psi)

  • Maximum measuring range: Rod 4m (13ft), rope 12m (39ft)

  • Accuracy: ±2mm (0.08")

  • International explosion protection certificates, overfill prevention WHG, SIL, 5-point linearity protocol

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

Predecessor: Levelflex M FMP40, Float Gauge LTC2230
