Deltabar S PMD70

Name: Deltabar S PMD70
Brand: Endress+Hauser
Availability: InStock

PMD70

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

"Product Phased Out".
Differential pressure, capacitive.
Transmitter.
Application: pressure, level, flow.
Membrane: ceramic.
Secondary process barrier.
:: High long term stability.
:: High reliability through process
monitoring.
:: High resistance to abrasion.
:: Enhanced mechanical integrity.
:: Modular.

Predecessor

PMD131

Deltabar S PMD230

Successor

F

L

E

X

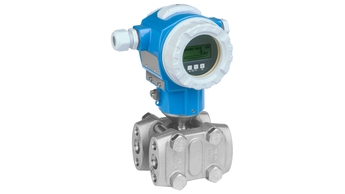

Deltabar S PMD75

Differential pressure transmitter with metal sensor for measurement of pressure differences
Read more
