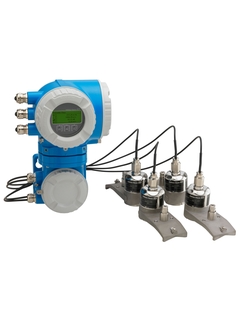

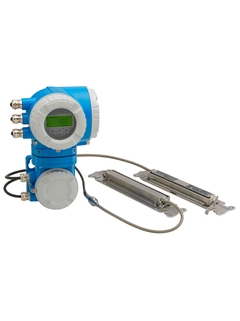

Picture of ultrasonic flowmeter Proline Prosonic Flow P 500 / 9P5B

Proline Prosonic Flow P 500 ultrasonic flowmeter

Clamp-on flowmeter for limited spaces in process industries with up to 3 I/Os

9P5B
please wait
Loading price
Prices temporarily unavailable
Price on request
from CHF ??.-

This product is not available in this market.

Specs at a glance

  • Max. measurement error

    Volume flow:
    ±3% o.r. for DN 15
    ±2% o.r. for DN 25 to DN 200
    ±2% o.r. above DN 200

  • Measuring range

    0 to 15 m/s (0 to 50 ft/s)

  • Medium temperature range

    DN 15 to 65 (½to 2½"): –40 to +150°C (–40 +302 °F)
    DN 50 to 4000 (2 to 160"): –40 to +170°C (–40 to +338 °F)

  • Max. process pressure

    N/A

Field of application

The proven sensor Prosonic Flow P can be installed close to elbows, expansions or constrictions in the pipe and still maintain the same measurement accuracy. Even measurement of abrasive, corrosive or toxic fluids is no problem for the non-invasive clamp-on device. Prosonic Flow P 500 is mounted without process interruption or opening the pipe. Heartbeat Technology not only ensures measurement reliability and compliant verification but also helps to find the optimal mounting position.

  • The measuring principle is non-invasive and independent of pressure, density and conductivity

  • Bidirectional measurement of various fluids, e.g. liquid hydrocarbons and chemicals

Device properties:

  • Mounting without process interruption

  • Wide nominal diameter range: DN 15 to 4000 (½ to 160")

  • Medium temperature: –40 to +170 °C (–40 to +338 °F)

  • Remote version with up to 3 I/Os

  • Backlit display with touch control and WLAN access

  • Standard cable between sensor and transmitter

Benefits

  • Constant accuracy even when mounted with short inlet run thanks to FlowDC

  • High safety standards – SIL by design, international hazardous area approvals

  • Long-term stable signal – maintenance-free permanent mounting from outside with coupling pads

  • Reliable measurement on various pipe materials – sensor for GRP and plastic pipes available

  • Full access to process and diagnostic information – numerous, freely combinable I/Os

  • Reduced complexity and variety – freely configurable I/O functionality

  • Integrated verification – Heartbeat Technology
