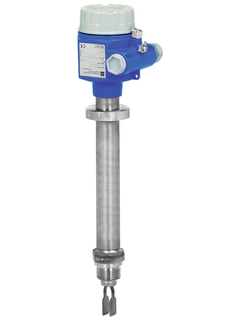

Name: Liquiphant S FTL70
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Predecessor

Rod probe 11500ZM
Rod probe 11500Z

Successor

F

L

E

X
Liquiphant FTL64

A level switch for hot and pumpable liquids
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Measuring principle

Vibration Liquids
Characteristic / Application

Modular housing concept
High process temperatures up to 280°C
wide range of process connections
Analogue and bus interfaces
Extensive certificate range (e.g. Ex,WHG)
compact, e.g. pipes
Dual Sealing / Second line of defense
Specialities

Foamdetection
Detect a densitychange
second line of defense
Supply / Communication

PROFIBUS PA
19...253V AC
10...55V DC-PNP
19...253V AC bzw 10...55V DC
8/16mA, 11...36V DC
NAMUR
PFM
Ambient temperature

-50 °C...+70 °C
(-58 °F...+158 °F)
Process temperature

-60 °C...+280 °C
(-76 °F...+540 °F,
(300°C / 572 °F 50h, cumulated
Process pressure / max. overpressure limit

Vacuum...100 bar
(Vacuum...1450 psi)
Main wetted parts

316L / Alloy
PFA and Enamel on request
Process connection

Thread:
G3/4A, G1A, R3/4", R1, NPT3/4, NPT1
Flange:
DIN DN25...DN100,
ASME 1"...4",
JIS 25A...100A
Sensor length

65mm (2.56")
Communication

PROFIBUS PA
19...253V AC
10...55V DC-PNP
19...253V AC bzw 10...55V DC
8/16mA, 11...36V DC
NAMUR
PFM
Certificates / Approvals

ATEX, FM, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI
Safety approvals

SIL
Design approvals

EN 10204-3.1
NACE MR0175, MR0103
ASME B31.3
AD2000
Marine approval

GL/ ABS
Options

Heavy duty stainless steel housing mainly for the oil and gas industry
Components

FTL325P/FTL375P Interface PFM
FTL325N/FTL375N Interface NAMUR

Filter

Search spare parts by number in drawing

60 spare parts & accessories

Cover F16 grey, PBTP, gasket

Cover

Drawing number

Order code

20

52025606
Cover F16 transparent, gasket

Cover

Drawing number

Order code

20

52025790
Cover F13 Ex Alu, gasket

Cover

Drawing number

Order code

20

52002698
Cover F17 Alu, gasket

Cover

Drawing number

Order code

20

52002699
Cover T13 Alu, gasket EPDM

Cover

Drawing number

Order code

20

52006903
Cover F27 316L, gasket EPDM

Cover

Drawing number

Order code

20

71114754
Adapter set housing/electronics FTL5x/7x

Housing/housing accessories

Drawing number

Order code

12

52004236
O-ring 71.0x3.55 EPDM, 5 pieces

Sealing

Drawing number

Order code

21

52004137
Sealing set EPDM,cover F13/17/18/27,5pc

Sealing

Drawing number

Order code

21

52004277
Sealing set EPDM 73.0x3.0, 10 pieces

Sealing

Drawing number

Order code

21

52008495
Sealing set FVQM, cover F27, 5 pc.

Sealing

Drawing number

Order code

21

71114756
Adapter set cable entry NPT1/2

further parts

Order code

52004133
Adapter set cable gland M20

further parts

Order code

52004134
Adapter set cable entry G1/2

further parts

Order code

52004135
Cable entry G1/2, gasket

further parts

Order code

52002447
Cable entry NPT1/2, gasket

further parts

Order code

52002448
Cable gland M20, gasket

further parts

Order code

52004278
Cable gland M20 Metal F15, gasket

further parts

Order code

71185029
Cover T13 "Terminal" Alu, gasket EPDM

Cover

Drawing number

Order code

25

52007103
Lubricant "SYNTHESO GLEP1" (tube a 8g)

further parts

Order code

52005977
Electronics FEL51 19-253VAC

Electronic

Drawing number

Order code

30

52002304
Electronics FEL52 10-55VDC-PNP

Electronic

Drawing number

Order code

30

52002305
Electronics FEL54 relays DPDT

Electronic

Drawing number

Order code

30

52002306
Electronics FEL55 11-36VDC

Electronic

Drawing number

Order code

30

52002307
Electronics FEL56 NAMUR

Electronic

Drawing number

Order code

30

52002308
Electronics FEL57 PFM

Electronic

Drawing number

Order code

30

52002309
Electronics FEL58 NAMUR

Electronic

Drawing number

Order code

30

52006454
Electronics FEL50A,PA,HW02.00,SW01.03.00

Electronic

Drawing number

Order code

30

71074953
Modification name plate, non Ex

further parts

Order code

71067434
Protection cover F16 housing

Order code

71127760
Weather protection cover F6/F10

Order code

942262-0000
Weather protection cover F13/F17/F18/F27

Order code

71040497
Fork protection screwed

Order code

71639787
Fork protection screwed and slitted

Order code

71639788
