Analog chlorine dioxide sensor CCS50

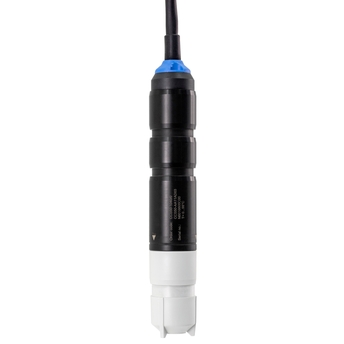

CCS50: Analog chlorine dioxide sensor ©Endress+Hauser

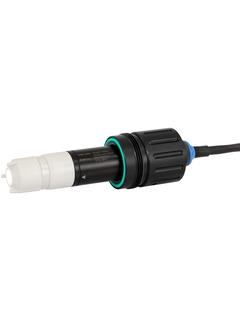

CCS50 analog chlorine dioxide sensor with adapter for installation in CCA250 flow assembly ©Endress+Hauser

Sensor for water, process water and utilities in all industries

CCS50 is a robust, low-maintenance sensor for chlorine dioxide measurement. It provides stable and fast measured values in water, process water and utilities. The sensor ensures efficient disinfection even at minimum water volumes and helps to achieve highest water quality and safety, to avoid overdosing of chlorine dioxide or to ensure the absence of ClO2 in beverage plants and reverse osmosis. CCS50 ensures continuity for the installed base of analog chlorine dioxide measuring points.

  • Benefits

    • Fast response time (t90 < 15 s) provides an accurate process view and enables prompt reaction to process changes as well as efficient process control.

    • Increased process safety: precise and long-term stable measurement ensures consistent process...

  • Field of application

    CCS50 is an analog chlorine dioxide sensor for skid builders and end customers. It measures reliably in:

    • Drinking water - to ensure sufficient disinfection

    • Cooling systems or towers - to avoid pathogen growth

    • Wash water for packed vegetables and salads...

Features and specifications

Back

Details

  • Measuring principle

    Chlorine dioxide

  • Application

    Drinking water - to ensure reliable disinfection
    Cooling water - to avoid biofilm growth
    Food - to ensure food quality
    Utilities to secure the absence/presence of chlorine dioxide

  • Characteristic

    Amperometric measurement of dissolved chlorine dioxide

  • Measurement range

    Trace: 0 to 5 mg/l ClO2

    Standard: 0 to 20 mg/l ClO2

  • Measuring method

    - Closed, membrane covered measuring cell
    - Reduction of chlordioxide at the cathode

  • Design

    Closed amperometric 2-electrode measuring cell with PVDF membrane

  • Material

    Sensor shaft: PVC

    Membrane: PVDF

    Membrane cap: PVDF

  • Dimension

    Diameter: 25 mm (0.98 in)

    Length: 161 mm (6.34 in)

  • Process temperature

    +0 to 55 °C (32 to 130°F), non-freezing

  • Process pressure

    1 bar (14.5 psi)

  • Temperature sensor

    10k NTC

  • Connection

    analog with fixed cable

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code 71372025

      Kit Adapter CCS5x + CCS5xD for CCA250

    • Order code 71372026

      Kit Adapter CCS5x + CCS5xD for CYA112

    • Order code 71372027

      Kit Adapter CCS5x + CCS5xD for CCA151

      Content: Clamp ring, thrust ring, + sealing

    • Order code 71372025

      Kit Adapter CCS5x + CCS5xD for CCA250

    • Order code 71372026

      Kit Adapter CCS5x + CCS5xD for CYA112

    • Order code 71372027

      Kit Adapter CCS5x + CCS5xD for CCA151

      Content: Clamp ring, thrust ring, + sealing

    • Order code 71257946

      photometer M+N PF-3, desinf. (chlorine)

      colorimetric measurement of free and total chlorine 0,05 .. 6mg/l Disinfection, drinking and process water hand held photometer, IP67-graded, with cuvettes, DPD, according to ISO 7393 deliverey in plastic case, test kit for free and total chlorine included ::hand held photometer for field cal. and verification of desinfection loops

  • 2
    • Nr 2 Order code CCV05-

      Maintenance kits CCV05

      Memosens CCSxxD/fixed cable sensor CCSxx

    • Order code COY8-

      Zero-point gel COY8

      Zero point: Verification, calibration, adjustment at zero point of oxygen and disinfection sensors ::Amperometric and optical sensors ::12, 25 and 40mm diameter ::Application in the lab, in the field
