Specs at a glance
-
Measuring range
0 to 500 g/l (0 to 31 lb/ft3), 0 to 50 %TS
-
Process pressure
PN 16, Class 150, 10K
Field of application

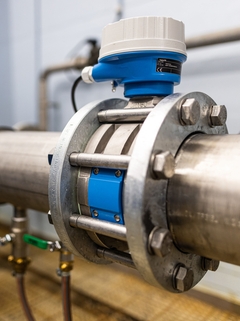

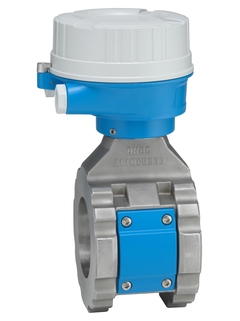

The inline measuring device Teqwave MW 500 enhances sludge treatment in wastewater treatment plants through real-time total solids measurement using microwave transmission. This allows quicker, more efficient process optimization and fewer lab measurements. Continuous data availability improves solid-liquid separation, boosts operational safety, and enables swift response to process changes. Typical applications in sludge treatment include clarification, digestion, and dewatering.

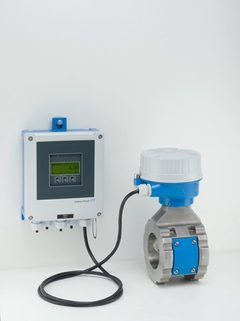

The remote transmitter version Proline 500 allows for maximum installation flexibility in challenging environments. Equipped with a built-in web server and optional integrated WLAN, it simplifies operation and provides additional process and device information.
Benefits
Reliable, real-time measuring performance – permanent in-line measurement with excellent repeatability
Less maintenance – polished measuring tube reduces build-up formation and extends cleaning intervals
Reduced effort in programming – onboard load rate calculation available in combination with a flowmeter
Fewer process measuring points – multivariable measurement (total solids, temperature, conductivity)
Easy installation – innovative sensor construction and state-of-the-art technology with web server (optional WLAN)
Full access to process and diagnostic information – numerous freely combinable I/Os available
Integrated verification – Heartbeat Technology enables documented device functionality without process interruption
