Specs at a glance
-
Measured variables
CH4, CO, CO2, H2, H2O, N2O, NH3, NO, NO2, O2, SO2
Hydrocarbons (e.g. C2H2), halogenated hydrocarbons (e.g. CH2Cl2) and other gases upon request -
Ambient temperature range
+5 °C ... +45 °C
-
Hazardous area approvals
S715 Ex:
ATEX II 3G Ex nR IIC T6 Gc
Without intrinsically safe measured value outputs
ATEX II 3G Ex nR [ib] IIC T6 Gc
With intrinsically safe measured value outputs
S720 Ex / S721 Ex:
ATEX II 2G Ex db ia IIC T6 Gb
Without intrinsically safe measured value outputs
ATEX II 2G Ex db ia [ia] IIC T6 Gb
With intrinsically safe measured value outputs
Field of application

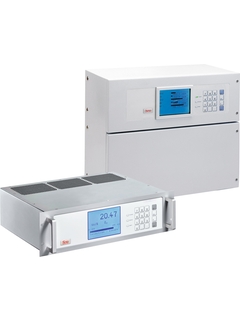

With the modular gas analyzer S700, a customer-specific and tailor-made measuring device can be put together for almost every application. Various analyzer modules for the measurement of well over 60 gases, and different housing variants offer comprehensive and individually tailored combination options.
Cooling gas monitoring of turbo generators
CO measurement for coal mill monitoring
H2 purity measurements in pressure swing adsorption systems
CO2 monitoring in natural gas during natural gas processing
Device properties:
Various analyzer modules are available: UNOR (NDIR), MULTOR (NDIR), OXOR-E (electrochemical O2), OXOR-P (paramagnetic O2), THERMOR (thermal conductivity)
Over 60 measuring components to choose from
Different housing variants
Up to three analyzer modules in one housing
Benefits
Simple application-specific configuration thanks to modular design
Can also be used in Zone 1 and Zone 2 (ATEX) explosion-hazardous areas
Automatic readjustment using test gas or calibration cell
Integrated self-monitoring and error analysis
Process monitoring for the safety and quality of manufacturing processes and products by measuring flammable gases and explosive gas mixtures in zones 1 and 2
Reliable remote control and integration into distributed control systems thanks to optional equipment with various interface converters
