Overfill Prevention System SOP300

Overfill Prevention System SOP300 Cabinet ©Endress+Hauser

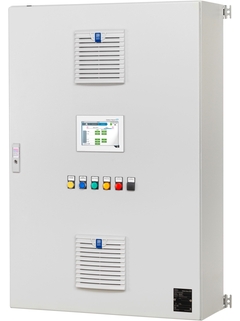

Overfill Prevention System SOP300 Cabinet

Application Example Overfill Prevention System SOP300 ©Endress+Hauser

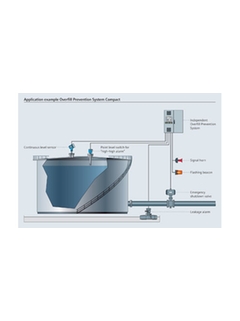

Application Example Overfill Prevention System SOP300

Application Example Tank Gauging and Overfill Prevention System SOP300 ©Endress+Hauser

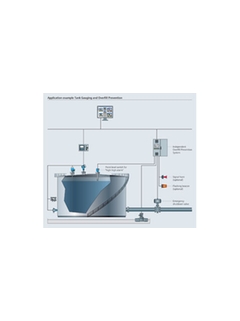

Application Example Tank Gauging and Overfill Prevention System SOP300

Overfill Prevention Management Process ©Endress+Hauser

Overfill Prevention Management Process

Overfill Prevention System Portfolio ©Endress+Hauser

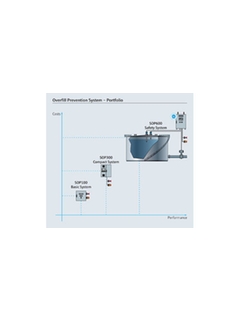

Overfill Prevention System Portfolio

Overfill Prevention System SOP300 Error Screen ©Endress+Hauser

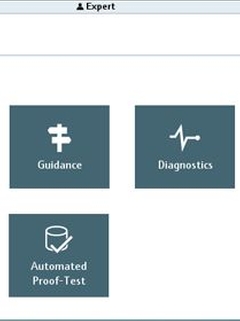

Overfill Prevention System SOP300 Error Screen

Overfill Prevention System SOP300 Tank Detail Screen ©Endress+Hauser

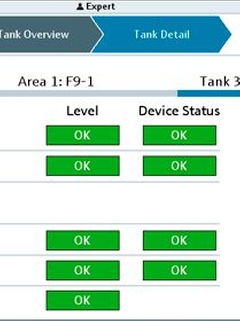

Overfill Prevention System SOP300 Tank Detail Screen

  • Overfill Prevention System SOP300 Cabinet
  • Application Example Overfill Prevention System SOP300
  • Application Example Tank Gauging and Overfill Prevention System SOP300
  • Overfill Prevention Management Process
  • Overfill Prevention System Portfolio
  • Overfill Prevention System SOP300 Error Screen
  • Overfill Prevention System SOP300 Tank Detail Screen

For reliable and secure tank overfill prevention

The Overfill Prevention System complies with API2350 and WHG. It works as automatic or manual system and can detect signals for overflow, pump protection and leakage in the base of the tank and issue alarms. If a defined level is overshot/undershot, or if a leak is detected, the system automatically activates signaling elements and outputs relevant messages on a display. The system is designed for up to 128 tanks and has an automated proof-test sequence. A report can be created and exported.

  • Benefits

    • High level of confidence and reliability thanks to a fully independent solution in accordance with API2350.

    • A safe investment, as the solution is modular, scalable and extensible.

    • Integrated, automated proof testing shortens the time for commissioning and...

  • Field of application

    The Overfill Prevention System has been designed as a safety function for the monitoring of critical levels (HH, H, L, LL) in tanks. It is also possible to monitor leaks in tanks and tank pipes in the tank basin. Appropriate sensors must be used for...
