Average temperature measurement

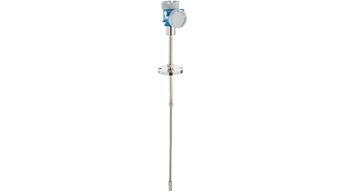

Prothermo NMT539

High precision average temperature measurement

Prothermo NMT539 is an intelligent HART signal converter, with a combined average temperature sensor and water bottom interface probe. For average temperature measurement consists of precision multispot Pt100 elements. The NMT539 is a highly capable solution for constant average temperature data and water interface data via HART communication. For custody transfer and accurate inventory measurement, it is best suited connected to Proservo NMS5 or Tank Side Monitor NRF590 with Micropilot.

Add to Cart
Configure
Sizing
Pricing after login and configuration

Compare

Benefits
Intrinsically safe device allowing for the safest electrical configuration possible
Available in four different versions based on customer requirements:
Converter only
Converter and temperature probe
Converter and water bottom probe
Converter,...

Show more
Intrinsically safe device allowing for the safest electrical configuration possible
Available in four different versions based on customer requirements:
Converter only
Converter and temperature probe
Converter and water bottom probe
Converter, temperature and water bottom probe
Converter is compatible with various element types in third party manufacturer temperature probes
Compatible with Endress+Hauser's user friendly FieldCare
Variety of process connections and cable entries available to meet worldwide classifications
High reliability and easy installation
Maintenance free

Show less

Field of application
For precision average temperature and water bottom measurement.

Process connection: Flanges

Temperature: -40 to +100°C (-40 to +212°F)

Measuring distance: 40m (131.2ft)

Accuracy: ± 0.1°C

International explosion protection certificates

Features and specifications

Back

Details

Measuring principle

Resistance Temperature Detector
Characteristic / Application

High precision average temperature measurement, with optional capacitance water bottom sensor
Max. immersion length on request

40 m (131.2 ft)
Process connection

JIS10K 50A RF

ASME 2" 150 lb RF

DN50 PN10 RF

JPI 2" 150 lb RF
Operating temperature range

Standard:

-40 °C...100 °C

Optional:

-55 °C...235 °C

Water Bottom spec.:

-40 °C...100 °C

Cyrogenic:

-170 °C...60 °C
Max. process pressure (static)

0 bar...0.5 bar

(0 psi...7.25 psi)
Accuracy

+/- 0.1 °C
Ex - approvals

ATEX, FM, CSA, IEC Ex, TIIS, NEPSI

Show more
Show less

Measuring principle

Servo / Float Tank Gauging
Characteristic / Application

High precision average temperature measurement, with optional capacitance water bottom sensor
Supply / Communication

2-wire (HART)
Accuracy

+/- 0.1 °C
Ambient temperature

-40 °C ... 85 °C
(-40 °F ... 185 °F)
Process temperature

Standard:
-40 °C...100 °C
(-40 °F...212 °F)

Optional:
-55 °C...235 °C
(-67 °F...455 °F)

Water Bottom spec.:
-40 °C...100 °
(-40 °F...212 °F)

Cyrogenic:
-170 °C...60 °C
(-274 °F...140 °F)
Process pressure absolute / max. overpressure limit

0 bar ... 0.5 bar
(0 psi ... 7.25 psi)
Main wetted parts

316 SUS
Process connection

JIS10K 50A RF
ASME 2" 150 lb RF
DN50 PN10 RF
JPI 2" 150 lb RF
Max. measurement distance

40 m (131.2 ft)
Communication

digital HART
Certificates / Approvals

ATEX, FM, CSA, IEC Ex, TIIS, NEPSI
Application limits

Heating coil or other mechanical obstruction in tank: may affect total length

Show more
Show less

Documents / Manuals / Software

Download type

Filter

Prothermo NMT539 - Technical Information
Available in four different versions based on customer requirements:
Converter Only
Converter & Temp. probe
Converter & Water
bottom probe
Converter,
temp. & water bottom probe
Converter is compatible with
various element types in third party manufacturer temp. probe.

Technical Information (TI)
Tankvision NXA820, NXA821, NXA822
Inventory Management System with completely integrated software for
operation via standard web browser

Technical Information (TI)
Prothermo NMT539 Technical Information
Combined HART converter, average temperature sensor and water
bottom interface

Technical Information (TI)
Prothermo NMT539 Technical Information
Tank gauging

Technical Information (TI)
Prothermo NMT 539 Operating Instructions and Description of Instrument Function
Average temperature and water bottom sensor

Operating Instruction (BA)
Prothermo NMT539 - Installation Instructions
The Prothermo NMT 539 is multi-spot Pt100 average thermometer
combined with a HART signal converter to meet the demand of temp.
measurement for both custody transfer and inventory control
applications.

Operating Instruction (BA)
Prothermo NMT 539 Installation Instructions
Average temperature and water bottom sensor

Operating Instruction (BA)
Prothermo NMT539 Operating Instructions
Tank gauging

Operating Instruction (BA)
Prothermo NMT539 Operating Instructions
Tank gauging

Operating Instruction (BA)
Prothermo NMT539-Operating Instructions and Description of Instrument FunctiInstallation Instruction
The Prothermo NMT539 is an intelligent HART signal converter, with a
combined average temperature sensor and water bottom interface probe.
For average temperature measurement, it consists of precision multi-spot
Pt100 elements.

Operating Instruction (BA)
Prothermo NMT539 Gas -tight feed through- Installation Instructions
The Prothermo NMT 539 is multi-spot Pt100 average thermometer
combined with a HART signal converter to meet the demand of temp.
measurement for both custody transfer and inventory control
applications.

Short Instruction (KA)

03/11

English
NMT539-7... Ex461-850 Rev. 2
Control drawing of the NMR539-7... for use in U.S.A
Ex461-850 Rev. 2

Ex Safety Instructions (XA)
NMT539-7... Ex462-711 Rev. 3
Control drawing of the NMT539-7... for use in Canada. (English)
Ex462-711 Rev. 3

Ex Safety Instructions (XA)
NMT539-70... Ex461-851 Rev.2
Control drawing of the NMT539-70.....(converter only version) for use in
U.S.A.
Ex461-851 Rev.2

Ex Safety Instructions (XA)
Prothermo NMT539 - Safety Instruction KEMA 03 ATEX 1448 X
Safety Instructions for Electrical Apparatus Certified
for Use in Explosion-hazardous Areas
Designation according to Directive 94/9/EC

Ex Safety Instructions (XA)
NMT539_70.... Ex462-712 Rev. 3
Control drawing of the NMT539_70.... for use in Canada.
Ex462-712 Rev. 3

Ex Safety Instructions (XA)
NMT539 IECEx / ATEX version
Upgraded applied standard to IEC60079-26:2014/EN60079-26:2015.
And integrated XA00583G(IECEx) and XA00585G(ATEX)

Ex Safety Instructions (XA)
Safety Instruction Prothermo NMT539
Safety Instructions for Electrical Apparatus Certified
for Use in Explosion-hazardous Areas

Ex Safety Instructions (XA)
Prothermo NMT539 - Safety Instruction
Safety Instructions for Electrical Apparatus Certified for Use in
Explosion-hazardous Areas
Designation according to IECEx 02

Ex Safety Instructions (XA)
Rozporz& 261;dzenie w sprawie wymaga& 324; dla zbiorników pomiarowych
Sk&
322;ady podatkowe i terminale paliwowe

Publications (PU)

10/09

Polish
Wykaz wyrobów akcyzowych
Sk&
322;ady podatkowe i terminale paliwowe

Publications (PU)

10/09

Polish
Skład podatkowy mazutu - artykuł CE 04/2010
System kontrolno-pomiarowy Endress+Hauser.
Raportowanie i wizualizacja zbiorników mazutowni
zgodnie z zarządzeniem Urzędu Regulacji Energetyki.

Publications (PU)

03/12

Polish
Tank Gauging
Система коммерческого и оперативного учета продуктов
в резервуарных парках.

Competence Brochure (CP)

07/15

Russian
Tank Gauging flexibel integriert
Petrostock SA, Genf/CH, modernisiert Tankmesstechnik mit
Endress+Hauser in bestehendem Tank Gauging System

Case Studies (CS)

10/11

German
DTM Single, Prothermo_NMT539_2_V1_45, 13.07.2019 (Temperature, Prothermo, 0x00B9)
HART,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, Prothermo_NMT539(1)_HART_FW1_5z_Dev_Rev_5, 06.07.2019 (Temperature, Prothermo, 0x00B8)
HART,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, Prothermo_NMT539(2)_HART_FW1_5z_Dev_Rev_5, 06.07.2019 (Temperature, Prothermo, 0x00BA)
HART,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, Prothermo_NMT539_1_V1_0, 24.07.2017 (Temperature, Prothermo, 0x00B9)
HART,

DeviceCare Version: 1.03.00

FieldCare Version: 2.11.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, Prothermo_NMT539_V1_45, 10.07.2019 (Temperature, Prothermo, 0x00B8)
HART,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
NMT539 - Picture
Tank Gauge


06/12

Language neutral
System&Gauging
Product Code: NMT532-, NMT539-
Declaration Number: KEMA 03ATEX1448 X

Manufacturer Declaration

English
System&Gauging
Product Code: NMT532-, NMT539-
Declaration Number: KEMA 03ATEX1448 X

Manufacturer Declaration

English
System&Gauging
Product Code: NMT532-, NMT539-
Declaration Number: KEMA 03ATEX1448 X

Manufacturer Declaration

English
SYSTEM
Product Code: NMT539-
Declaration Number: EC_00540_01.17

EU Declaration

German , English , fr
SYSTEM
Product Code: NMT539-
Declaration Number: EC_00538_02.17

EU Declaration

German , English , fr
SYSTEM
Product Code: NMT539-
Declaration Number: EC_00538_01.17

EU Declaration

German , English , fr
SYSTEM
Product Code: NMT539-
Declaration Number: EC_00540_02.17

EU Declaration

German , English , fr
SYSTEM
Product Code: NMT532-, NMT539-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TC BY_112 11.01. TP004 003 143

Miscellaneous

Russian
SYSTEM
Product Code: NMT532-, NMT539-
Region/Country: Russia (Declaration of Conformity), Russia (TR CU)
Approval Agency: EAC
Approval Number: RU D-JP.MO10.B.06149

Miscellaneous

Russian
System&Gauging
Product Code: NMT532-, NMT539-
Approval Agency: KEMA

Explosion Protection

English
SYSTEM
Product Code: NMT532-, NMT539-
Approval Agency: KEMA

Explosion Protection

English
System&Gauging
Product Code: NMT539-
Approval Agency: TIIS
Protection: Ex ia IIB T4

Explosion Protection

Japanese
System&Gauging
Product Code: NMT532-, NMT539-
Approval Agency: KEMA

Explosion Protection

English
SYSTEM
Product Code: NMT539-
Approval Agency: TIIS
Protection: Ex ia IIB T2

Explosion Protection

Japanese
System&Gauging
Product Code: NMT532-, NMT539-
Approval Agency: KEMA

Explosion Protection

English
System&Gauging
Product Code: NMT532-, NMT539-
Approval Agency: KEMA

Explosion Protection

English
System&Gauging
Product Code: NMT539-
Approval Agency: TIIS
Protection: Ex ia IIB T4

Explosion Protection

Japanese
SYSTEM
Product Code: NMT532-, NMT539-
Region/Country: China
Approval Agency: NEPSI

Explosion Protection

Chinese
RTD THERMOMETER ZONE, System&Gauging
Product Code: NMT539-
Region/Country: Japan
Approval Agency: TIIS
Protection: Ex d [ia] IIB T4

Explosion Protection

Japanese
SYSTEM
Product Code: NMT532-, NMT539-
Approval Agency: KEMA

Explosion Protection

English
SYSTEM
Product Code: NMT532-, NMT539-
Region/Country: Brazil
Approval Agency: TÜV
Category: zone 0,1
Protection: Ex ia IIB T6...T2 Ga/Gb, Ex ia IIB T6...T4 Gb

Explosion Protection

Portuguese
System&Gauging
Product Code: NMT539-
Approval Agency: TIIS
Protection: Ex ia IIB T4

Explosion Protection

Japanese
SYSTEM
Product Code: NMT532-, NMT539-
Region/Country: USA
Approval Agency: FM

Explosion Protection

English
System&Gauging
Product Code: NMT532-, NMT539-
Approval Agency: KEMA

Explosion Protection

English
SYSTEM
Product Code: NMT532-, NMT539-
Approval Agency: KEMA

Explosion Protection

English
SYSTEM
Product Code: NMT532-, NMT539-
Region/Country: Canada
Approval Agency: FM

Explosion Protection

English
SYSTEM
Product Code: NMT539-
Approval Agency: TIIS
Protection: Ex ia IIB T2

Explosion Protection

Japanese
System&Gauging
Product Code: NMT539-
Approval Agency: TIIS
Protection: Ex ia IIB T4

Explosion Protection

Japanese
System&Gauging
Product Code: NMT539-
Approval Agency: TIIS
Protection: Ex ia IIB T4

Explosion Protection

Japanese
RTD THERMOMETER ZONE, System&Gauging
Product Code: NMT539-
Region/Country: Japan
Approval Agency: TIIS
Protection: Ex d [ia] IIB T4

Explosion Protection

Japanese
SYSTEM
Product Code: NMS5-, NMS531-, NMS532-, NMS534-, NMS535-, NMS536-, NMS7-, NMT532-, NMT539-
Region/Country: India
Approval Agency: CC(O)E
Protection: Ex d, Ex ia

Explosion Protection

English
System&Gauging
Product Code: NMT539-
Approval Agency: TIIS
Protection: Ex ia IIB T4

Explosion Protection

Japanese
System&Gauging
Product Code: NMT539-
Approval Agency: TIIS
Protection: Ex ia IIB T4

Explosion Protection

Japanese
SYSTEM
Product Code: NMT532-, NMT539-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Protection: Ex ia IIB T6...T2 Ga/Gb, Ex ia IIB T6...T2 Gb

Explosion Protection

Russian
System&Gauging
Product Code: NMT539-
Approval Agency: TIIS
Protection: Ex ia IIB T2

Explosion Protection

Japanese
System&Gauging
Product Code: NMT532-, NMT539-
Approval Agency: KEMA

Explosion Protection

English
System&Gauging
Product Code: NMT539-
Approval Agency: TIIS
Protection: Ex ia IIB T4

Explosion Protection

Japanese
RTD THERMOMETER ZONE, System&Gauging
Product Code: NMT539-
Region/Country: Japan
Approval Agency: TIIS
Protection: Ex d [ia] IIB T4

Explosion Protection

Japanese
SYSTEM
Product Code: NMT539-
Region/Country: China
Approval Agency: SBM
Approval Number: PAC 2015-L257

Metrology

English
SYSTEM, Tankvision
Product Code: NMS5-, NMS7-, NMT532-, NMT539-, NRF560-, NXA820-, NXA821-, NXA822-
Region/Country: Bulgaria
Approval Agency: BIM (Bulgarian Institude of Metrology)
Approval Number: 12.04.4968

Metrology

Bulgarian
SYSTEM
Product Code: NMT539-
Region/Country: Bosnia-Herzegovina
Approval Agency: IMBiH
Approval Number: 06-46-7-AN-136-2/17

Metrology
Micropilot S, SYSTEM, Tankvision
Product Code: FMR530-, FMR532-, FMR533-, FMR540-, NMT532-, NMT539-, NRF590-, NXA820-, NXA821-, NXA822-
Region/Country: Bulgaria
Approval Agency: BIM (Bulgarian Institude of Metrology)
Approval Number: 12.03.4963

Metrology

Bulgarian
System&Gauging
Product Code: NMT539-
Approval Agency: PTB
Approval Number: 14.70_08.01

Metrology

German
SYSTEM
Product Code: NMT532-, NMT539-
Approval Agency: Rosstandart
Approval Number: JP.C.32.004.A_40316

Metrology

Russian
SYSTEM
Product Code: NMT532-, NMT539-
Region/Country: Russia
Approval Agency: Rosstandart
Approval Number: JP.C.32.004.A № 71208

Metrology

Russian
SYSTEM
Product Code: NMT539-
Approval Number: ATS 15/17

Metrology

English
Micropilot S, SYSTEM, Tankvision, TERMINALVISION
Product Code: FMR532-, FMR540-, NMS5-, NMS7-, NMT539-, NRF590-, NXA20-, NXA820-, NXA85-
Region/Country: Russia (GOST)
Approval Agency: Rosstandart
Approval Number: DE.C.29.004.A_66368

Metrology

Russian
SYSTEM
Product Code: NMT539-
Region/Country:
Approval Agency: MSST
Approval Number: 2793

Metrology

Russian

Show more
Show less

Accessories / Spare parts

???Show as Pdf???

Filter

Order code

Specification

11
- Nr 11 Order code 52017174

  O-ring, terminal box, small, CR

  Size: D100mm, d3mm. Material: CR (Chloroprene Rubber). Usage: NMT539 Converter.

  Show details Show less
- Nr 11 Order code 017803-0043

  O-ring, electric cover, NBR

  Size: D88mm, d3mm. Material: NBR. Part: electric box, NMT. Usage: NMT532/NMT535/NMT536/NMT538/NMT539.

  Show details Show less
- Nr 11 Order code 017803-0044

  O-ring, terminal housing, NBR

  Size: D73mm, d3mm. Material: NBR. Part: terminal box, NMT. Usage: NMT532/NMT535/NMT536/NMT538/NMT539.

  Show details Show less
21
- Nr 21 Order code 52017175

  Cover, connection housing

  NMT Junction Box cover, Material: aluminium casting. Colour: E+H gray. Usage: NMT539 converter retro fit.

  Show details Show less
- Nr 21 Order code 017802-0008

  Cover, terminal box, Alu, NMT

  NMT terminal box cover, M73. Color: E+H gray. Material: aluminium casting. Usage: NMT532/NMT535/NMT536/NMT539.

  Show details Show less
- Nr 21 Order code 70106024

  Cover, E-housing NMT532/9, M88 long type

  NMT terminal Box cover, M88, Color: E+H gray. Material: aluminium casting. Usage: NMT532/NMT539.

  Show details Show less
31
- Nr 31 Order code 70108674

  NMT539Module, Exia, Temp.+WB 1m, v.186

  Temperature, water bottom 1m, HART ID: v.186. Usage: NMT539.

  Show details Show less
- Nr 31 Order code 70108675

  Module assembly, FM, Temp., WB 2m v.185

  Temperature, water bottom 2m, HART ID: v.185. Usage: NMT539.

  Show details Show less
- Nr 31 Order code 70108676

  Module assembly, FM, Temp., WB 1m v.185

  Temperature, water bottom 1m, HART ID: v.185. Usage: NMT539.

  Show details Show less
- Nr 31 Order code 70108677

  NMT539/532Module,Exia, Temperature,v.184

  HART ID: v.184. Usage: NMT532/NMT539.

  Show details Show less
- Nr 31 Order code 70108679

  NMT539Module, Exia, Temp.+WB 2m, v.186

  FM approval. Temperature, water bottom 2m, HART ID: v.186. Usage: NMT539.

  Show details Show less
- Nr 31 Order code 71086630

  NMT539Module, Exia,W&M,Temp.+WB 1m,v.186

  Temperature, water bottom 1m, weight and measure, HART ID: v.186. Usage: NMT539.

  Show details Show less
- Nr 31 Order code 71086631

  NMT539Module,Exia,W&M,Temperture, v.184

  Temperature, weight and measure, HART ID: v.184. Usage: NMT539.

  Show details Show less
- Nr 31 Order code 71086632

  NMT539Module, Exia,W&M,Temp.+WB 2m,v.186

  Temperature, water bottom 2m, weight and measure, HART ID: v.186. Usage: NMT539.

  Show details Show less
- Nr 31 Order code 71114398

  NMT539Module,TIIS Exd[ia],Temp.,v.184

  NMT539 module, only temp. Usage: NMT539.

  Show details Show less
- Nr 31 Order code 71114400

  NMT539Module,TIIS Exd[ia],T+WB1m,v.186

  NMT539 module, temp. + water bottom 1m. Usage: NMT539.

  Show details Show less
- Nr 31 Order code 71114401

  NMT539Module,TIIS Exd[ia],T+WB2m,v.186

  NMT539 module, temp. + water bottom 2m. Usage: NMT539.

  Show details Show less
34
- Nr 34 Order code 58020200

  Terminal, EMC filter assembly

  Usage: NMT532/NMT539.

  Show details Show less
- Nr 34 Order code 71114402

  Terminal + EMC filter ass. TIIS Exd[ia]

  Usage: NMT539.

  Show details Show less
- Order code 71130913

  Input module NMT539

  Usage: NMT539.

  Show details Show less
- Order code 71130915

  Simulator NMT539

  Usage: NMT539.

  Show details Show less

Show more
Show less

Predecessor
- Prothermo NMT535
- NMT536
- NMT538
- RCV11
- RCV12
- NMT537

Success stories

News
Protection of pumps... and people

Adding a few sensors to a pump system can help make pumps run more efficiently and help discover problems before they get too serious – and, they may also save a life
Read the full story

News
Meeting evolving demands in the Oil & Gas industry

At Oil & Asia Event, Mumbai we showcased our products, solutions, services and displayed working products to show typical installations as you find them in your industry
Read the full story

News
Customer Seminar Delhi

In Delhi customer seminar our experts presented latest products, services and solutions offering from Endress+Hauser India.
Read the full story
Upcoming events
22.06.2020 - 26.06.2020
- Certified Training for PROFIBUS DP/PA Engineer
With the help of actual hands-on tasks you will learn how PROFIBUS fieldbus technology works in detail. At the end of the course you will be able to design and commission a PROFIBUS fieldbus network.

Average temperature measurement
Prothermo NMT539

High precision average temperature measurement

Benefits

Field of application

Features and specifications

Details

Measuring principle

Characteristic / Application

Max. immersion length on request

Process connection

Operating temperature range

Max. process pressure (static)

Accuracy

Ex - approvals

Measuring principle

Characteristic / Application

Supply / Communication

Accuracy

Ambient temperature

Process temperature

Process pressure absolute / max. overpressure limit

Main wetted parts

Process connection

Max. measurement distance

Communication

Certificates / Approvals

Application limits

Documents / Manuals / Software

Accessories / Spare parts

Predecessor

Success stories

Iplom enhances catalyst life, process safety and efficiency

Automated inline self-calibration at Lonza

Optimized logistics concept for tank systems

Speed and accuracy help to meet stringent quality demands

Protection of pumps... and people

Meeting evolving demands in the Oil & Gas industry

Customer Seminar Delhi

Average temperature measurementProthermo NMT539

High precision average temperature measurement

Benefits

Field of application

Features and specifications

Details

Measuring principle

Characteristic / Application

Max. immersion length on request

Process connection

Operating temperature range

Max. process pressure (static)

Accuracy

Ex - approvals

Measuring principle

Characteristic / Application

Supply / Communication

Accuracy

Ambient temperature

Process temperature

Process pressure absolute / max. overpressure limit

Main wetted parts

Process connection

Max. measurement distance

Communication

Certificates / Approvals

Application limits

Documents / Manuals / Software

Accessories / Spare parts

Predecessor

Success stories

Iplom enhances catalyst life, process safety and efficiency

Automated inline self-calibration at Lonza

Optimized logistics concept for tank systems

Speed and accuracy help to meet stringent quality demands

Protection of pumps... and people

Meeting evolving demands in the Oil & Gas industry

Customer Seminar Delhi

Average temperature measurement
Prothermo NMT539
