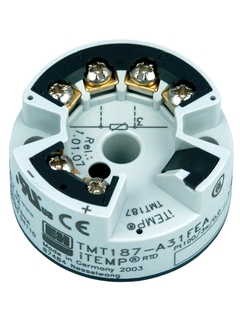

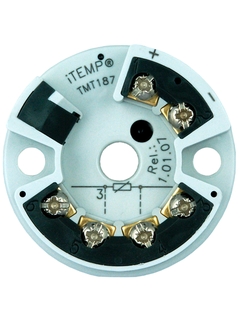

Temperature head transmitter
Transformation of the sensor signal into a stable and standardized output signal for all industries
The transmitter is designed for the transformation of an RTD Pt100 sensor signal in a fixed measuring range. The standardized output signal used for process measurement is a 4 to 20 mA signal. This means fast, easy and cost-saving temperature measuring as well as reliable and precise measured values for for a wide range of industry applications.
High accuracy in complete ambient temperature range
Failure information when sensor breaks or short-circuits as per NAMUR NE 43
EMC as per NAMUR NE 21, CE
Ex approval: ATEX Ex ia and dust zone 22 in compliance with EN 50281-1; FM IS; CSA IS
Field of application
Fixed range temperature head transmitter for converting a Pt100 input signal into an 4 to 20 mA analog output signal
Input: Resistance thermometer (RTD) Pt100
Accessories / Spare parts
The unit is not repairable
Order code 51001112
Spare part set for TMT181/187/188/182
(4 screws, 6 springs, 10 spring rings)
Order code 51000856
DIN rail clip
according to IEC 60715 for temperature head transmitters.
Order code TAF10-
Field housing TAF10
Application: E+H Head transmitter. Housing: Alu IP66, 100x100x60mm.
