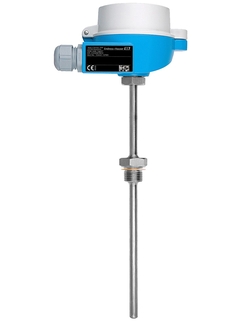

Product picture of resistance thermometer TSM187

Easytemp TSM187
Modular RTD thermometer

Comprehensive and common temperature measurement technology for almost all branches of industry

TSM187
please wait
Loading price
Prices temporarily unavailable
from CHF 803.-

Specs at a glance

  • Accuracy

    class A acc. to IEC 60751

  • Response time

    t50 = 18 s
    t90 = 55 s

  • Max. process pressure (static)

    at 20 °C: 50 bar (725 psi)

  • Operating temperature range

    PT 100:
    -30 °C ...300 °C
    (-22 °F ...572 °F)

  • Max. immersion length on request

    up to 400,00 mm (15,75'')

Field of application

The thermometer is mainly used in the chemical industry but also finds its use in other branches. Preferred applications are vessels and pipes where stability and short response times are required. The device with head transmitter is a complete unit ready for use with enhanced measurement accuracy and reliability compared to directly wired sensors. A variety of dimensions offers flexible application possibilities.

The TSM187 compact thermometer range covers a wide variety of market needs worldwide. Typical application can be found in the chemical and pharmaceutical industry, food, water and waste water and power plants. Preferred applications are in vessels or in pipes, where requirements are short response time and mechanical strength.

Benefits

  • High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths

  • High degree of insert compatibility and design as per DIN 43772

  • Extension neck to protect the head transmitter from overheating

  • Fast response time

  • Head transmitter with analog output 4 to 20 mA

  • Simple products

  • Easy to select, install and operate
