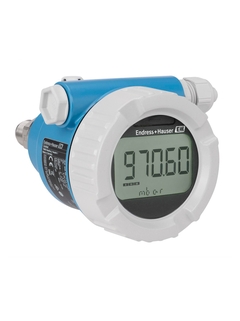

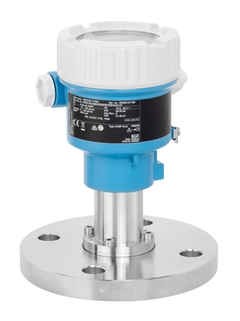

Cerabar PMC51B - pressure transmitter

Cerabar PMC51B - pressure transmitter

Smart transmitter with ceramic membrane for highly accurate measurement of liquids and gases

PMC51B
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Cerabar PMC51B - pressure transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser
Cerabar PMC51B - pressure transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Accuracy

    Standard:
    up to 0.075 %
    Platinum:
    up to 0.055 %

  • Process temperature

    -40°C...+100°C
    (-40°F...+212°F)

  • Pressure measuring range

    100 mbar...40 bar
    (1.5 psi...600 psi)

  • Main wetted parts

    Ceraphire ceramic
    FKM, EPDM, HNBR,
    Perlast, Kalrez

  • Material process membrane

    Ceramic

  • Measuring cell

    100 mbar...40 bar
    (1.5 psi...600 psi)

Field of application

This transmitter belongs to the new Cerabar generation. It combines robustness with numerous benefits: e.g. easiest local or remote operation and condition-based maintenance.
The software is designed to simplify the handling. Intuitive wizards guide you through the commissioning and proof testing of the device which minimizes operating errors. The transmitter can be remotely controlled via app on a mobile device and a secure Bluetooth connection.

  • Pressure measuring range: up to 40 bar (600 psi)

  • Fully vacuum resistant up to +100°C (212°F) process temperature

  • Accuracy: up to +/-0.055%

Benefits

  • Wireless control of the device in the process area with the SmartBlue App. Process interruption is not necessary.

  • Reduce systematic failures - error free SIL commissioning and instrument guided proof testing

  • Reduce on site accidents and protect equipment when instruments are in difficult to reach areas

Lean selection

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

FLEX: Lean ©Endress+Hauser

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable
