Radiometric level and density measurement Gammapilot FMG50

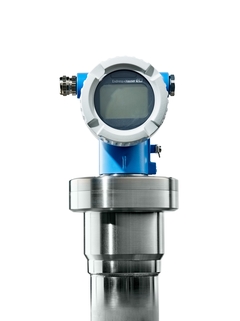

Gammapilot FMG50 stainless steel housing ©Endress+Hauser

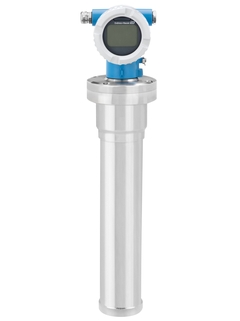

Gammapilot FMG50 aluminum housing ©Endress+Hauser

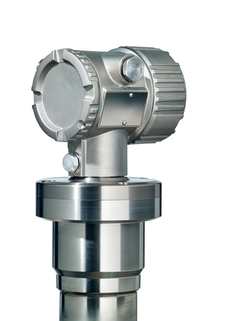

Gammapilot FMG50 aluminum housing ©Endress+Hauser

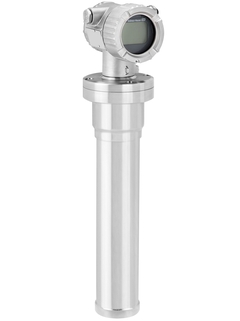

Gammapilot FMG50 stainless steel housing ©Endress+Hauser

The animation shows the radiometric measuring principle

Compact transmitter for point level detection, continuous level, interface and density measurement

The Gammapilot FMG50 compact transmitter is designed for non-contact point level detection, continuous level, interface and density measurement in liquids, solids, suspensions or sludges. As the first true 2-wire loop powered compact transmitter it minimizes engineering and installation efforts.

  • Benefits

    • First real 2-wire loop-powered compact transmitter minimizes engineering and installation efforts

    • Reduced installation and engineering costs thanks to the first 2-wire loop powered compact transmitter

    • Increased plant safety, efficiency and availability...

  • Field of application

    • For all kinds of process vessels, like reactors, autoclaves, separators, acid tanks, cyclones

    • For liquids, solids, suspensions or sludges etc.

    • Extreme measuring conditions, for example corrosion, abrasion, viscosity, toxicity

    • Process temperature: No...

Details

  • Measuring principle

    Radiometric Limit

  • Characteristic / Application

    Compact transmitter for extreme process conditions (temperature, pressure);

    Non-contact measuring technique

  • Specialities

    Heartbeat Technology,

    SIL 2/3 according to IEC 61508,

    Bluetooth® commissioning, operation and maintenance with the SmartBlue App

  • Supply / Communication

    2-wire loop powered

  • Ambient temperature

    -40 °C...+80 °C,

    (-40 °F...+176 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Sensor length

    PVT scintillator:

    200 mm...400 mm,

    NAI scintillator:

    50 x 50 mm,

    50 x 100 mm

  • Communication

    4...20 mA HART

  • Safety approvals

    SIL 2/3

  • Options

    Display

  • Components

    Isotope: FSG60, FSG61,

    Source container: FQG60, FQG61, FQG62, FQG63, FQG66,

    Mounting accessories: FHG61

  • Measuring principle

    Radiometric

  • Characteristic / Application

    Compact transmitter for extreme process conditions (temperature, pressure);

    Non-contact measuring technique

  • Interface measurement

    Interfaces liquid / liquid also with emulsion layers

    Interfaces liquid / solid

  • Specialities

    Heartbeat Technology,

    SIL 2/3 according to IEC 61508,

    Bluetooth® commissioning, operation and maintenance with the SmartBlue App

  • Supply / Communication

    2-wire loop powered

  • Accuracy

    +/-1%

  • Ambient temperature

    -40 °C...+80 °C,

    (-40 °F...+176 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Sensor length

    PVT scintillator

    400 mm...3000 mm,

    >3000 mm cascade mode

  • Max. measurement distance

    Unlimited measuring range,

    Cascade

  • Communication

    4...20 mA HART

  • Safety approvals

    SIL 2/3

  • Options

    Display

  • Components

    Isotope: FSG60, FSG61,

    Source container: FQG60, FQG61, FQG62, FQG63, FQG66,

    Mounting accessories: FHG61

  • Measuring principle

    Radiometric

  • Characteristic / Application

    Compact transmitter for extreme process conditions (temperature, pressure);

    Non-contact measuring technique

  • Specialities

    Heartbeat Technology,

    SIL 2/3 according to IEC 61508,

    Bluetooth® commissioning, operation and maintenance with the SmartBlue App

  • Supply / Communication

    2-wire loop powered

  • Accuracy

    +/-1%

  • Ambient temperature

    -40 °C...+80 °C,

    (-40 °F...+176 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Sensor length

    PVT scintillator

    400 mm...3000 mm,

    >3000 mm cascade mode

  • Max. measurement distance

    Unlimited measuring range,

    Cascade

  • Communication

    4...20 mA HART

  • Safety approvals

    SIL 2/3

  • Options

    Display

  • Components

    Isotope: FSG60, FSG61,

    Source container: FQG60, FQG61, FQG62, FQG63, FQG66,

    Mounting accessories: FHG61

  • Measuring principle

    Radiometric Limit

  • Characteristic / Application

    Compact transmitter for extreme process conditions (temperature, pressure);

    Non-contact measuring technique

  • Specialities

    Heartbeat Technology,

    SIL 2/3 according to IEC 61508,

    Bluetooth® commissioning, operation and maintenance with the SmartBlue App

  • Supply / Communication

    2-wire loop powered

  • Ambient temperature

    -40 °C...+80 °C,

    (-40 °F...+176 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Sensor length

    PVT scintillator:

    200 mm...400 mm,

    NAI scintillator:

    50 x 50 mm,

    50 x 100 mm

  • Communication

    4...20 mA HART

  • Safety approvals

    SIL 2/3

  • Options

    Display

  • Components

    Isotope: FSG60, FSG61,

    Source container: FQG60, FQG61, FQG62, FQG63, FQG66,

    Mounting accessories: FHG61

  • Measuring principle

    Radiometric Density

  • Characteristic / Application

    Compact transmitter for extreme process conditions (temperature, pressure);

    Non-contact measuring technique

  • Supply / Communication

    2-wire loop powered

  • Ambient temperature

    -40 °C...+80 °C,

    (-40 °F...+176 °F)

  • Process temperature

    Any

  • Process pressure absolute

    Any

  • Wetted parts

    Non-contact

  • Sensor length

    PVT scintillator:

    200 mm...400 mm,

    NAI scintillator:

    50 x 50 mm,

    50 x 100 mm

  • Output

    4...20 mA HART

  • Options

    Display

  • Specialities

    Heartbeat Technology,

    SIL 2/3 according to IEC 61508,

    Bluetooth® commissioning, operation and maintenance with the SmartBlue App

  • Components

    Isotope: FSG60, FSG61,

    Source container: FQG60, FQG61, FQG62, FQG63, FQG66,

    Mounting accessories: FHG61

Documents / Manuals / Software
