Liquiphant FTL50H

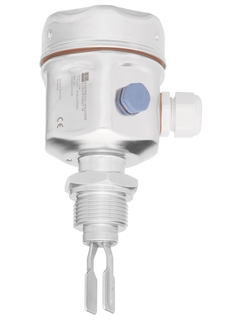

Liquiphant FTL50H ©Endress+Hauser

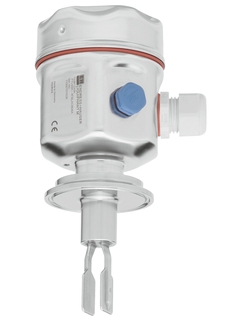

Liquiphant FTL50H ©Endress+Hauser
Liquiphant FTL50H ©Endress+Hauser

Vibronic measuring principle

Compact vibration point level switch for liquids especially in the food and life sciences industry

Liquiphant FTL50H is a point level switch for use in hazardous areas with all international certificates. Especially useable in the food and life sciences industry with hygienic certificates (3-A, EHEDG, ASME BPE). FTL50H offers functional safety SIL2/SIL3. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.

  • Benefits

    • International hygienic certificates (3-A, EHEDG, ASME BPE). FDA-conformed material

    • Electro-polished and passivated surface finishing

    • International explosion protection certificates and overfill prevention certificate (WHG)

    • No mechanically moving parts: no...

  • Field of application

    Point level switch for all liquids with completely welded housing concept.

    • Process connections: Threads, flanges and hygienic process connection (Tri-Clamp, dairy coupling, aseptic, DRD, SMS, Varivent)

    • Temperature: -50 to +150°C (-58 to +302°F)

    • ...

Features and specifications

Back

Details

  • Measuring principle

    Vibration Liquids

  • Characteristic / Application

    Liquiphant M Density
    with Density Computer FML621
    Temperature and pressure measurement

    Modular & completely welded housing concept

    Focus Food & Pharma

    Surface up to 0.3 µ

  • Supply / Communication

    Transmitter power supply (MUS)

  • Ambient temperature

    -50...70°C

    -50...60°C for hazardous applications

  • Process temperature

    0...80°C (validity of accuracy data)

    -50...0°C/80...150°C (with reduced technical data)

  • Process pressure absolute

    0...25 bar

    >25...64 bar (with reduced technical data)

  • Wetted parts

    316L

  • Hygienic

    3A

    EHEDG

  • Sensor length

    Compact: 50.5 mm

  • Output

    Pulse

  • Certificates / Approvals

    ATEX, FM, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI

  • Specialities

    Commissioning with ReadWin2000

  • Components

    Density Computer FML621

  • Other approvals and certificates

    SIL2/ SIL3

  • Measuring principle

    Vibration Liquids

  • Characteristic / Application

    Modular & completely welded housing concept
    Focus Food & Pharma
    surface up to 0,38µm electro polished
    wide range of process connections
    Analogue and bus interfaces
    Extensive certificate range (e.g. EHEDG,3A)
    Compact, e.g. pipes

  • Specialities

    Foamdetection
    Detect changes of the density

  • Supply / Communication

    PROFIBUS PA
    19...253V AC
    10...55V DC-PNP
    19...253V AC or 10...55V DC
    8/16mA, 11...36V DC
    NAMUR
    PFM

  • Ambient temperature

    -50 °C...+70 °C
    (-58 °F...+158 °F)

  • Process temperature

    -50 °C...+150 °C
    (-58 °F...+302 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum...64 bar
    (Vacuum...928 psi)

  • Min. density of medium

    0.5g/cm³(0.4g/cm³ optional)

  • Main wetted parts

    316L

  • Process connection

    Thread:

    G3/4A, G1A, R3/4", R1, NPT3/4, NPT1

    Flange:

    DN25...DN100,

    ASME 1"...4",

    JIS 25A...100A

  • Process connection hygienic

    Tri-Clamp ISO2852
    Dairy coupling
    Aseptic
    DRD
    SMS
    Varivent

  • Communication

    PROFIBUS PA
    19 ..253V AC
    10...55V DC-PNP
    19...253V AC or 10...55V DC
    8/16mA, 11...36V DC
    NAMUR
    PFM

  • Certificates / Approvals

    ATEX, FM, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI

  • Safety approvals

    Overfill prevention WHG

    SIL2/ SIL3

  • Design approvals

    EN 10204-3.1

    AD2000

  • Hygienic approvals

    CoC ASME-BPE

  • Marine approval

    GL/ ABS/ DNV

  • Components

    FTL325P/FTL375P Interface PFM
    FTL325N/FTL375N Interface NAMUR

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
  • 20
    • Nr 20 Order code 52002698

      Cover F13 Ex Alu, gasket

      O-ring EPDM. Usage: housing F13, aluminium, Ex d.

    • Nr 20 Order code 52002699

      Cover F17 Alu, gasket

      O-ring EPDM. Usage: housing F17, aluminium.

    • Nr 20 Order code 52006903

      Cover T13 Alu, gasket EPDM

      O-ring EPDM. Usage: housing T13, aluminium.

    • Nr 20 Order code 52025606

      Cover F16 grey, PBTP, gasket

      Gasket EPDM. Usage: housing F16 Polyester, FMI21, FMI51/FMI52, FMU30, FTI51/FTI52/ FTI55/FTI56, FTI77, FTL50/FTL51/FTL51C/ FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85, FTW31/FTW32.

    • Nr 20 Order code 52025790

      Cover F16 transparent, gasket

      Gasket EPDM. Usage: housing F16 Polyester.

    • Nr 20 Order code 52027000

      Cover F15 316L, gasket

      Gasket 67.5x2.9x1.5, VMQ/PTFE. Usage: housing F15, stainless steel.

  • 220
    • Nr 220 Order code 52027000

      Cover F15 316L, gasket

      Gasket 67.5x2.9x1.5, VMQ/PTFE. Usage: housing F15, stainless steel.

  • 20
    • Nr 20 Order code 52027002

      Cover F15 316L, sight glass, gasket

      Sight glass: glass. Gasket 67.5x2.9x1.5, VMQ/PTFE. Usage: housing F15, stainless steel.

    • Nr 20 Order code 52028207

      Cover F15, sight glass PC, 316L, gasket

      Sight glass: Polycarbonate PC. Gasket 67.5x2.9x1.5, VMQ/PTFE. Usage: housing F15 stainless steel, FMB50/FMB51/FMB52/FMB53,PMC51, PMP51/PMP55, not for EEx ia (intrinsically safe).

  • 12
    • Nr 12 Order code 52004236

      Adapter set housing/electronics FTL5x/7x

      Fixing set, consists of: Securing ring 301. Adapter ring PPA. Usage: Liquiphant M/S.

  • 21
    • Nr 21 Order code 52004137

      O-ring 71.0x3.55 EPDM, 5 pieces

      Usage: cover, housing F16, Polyester.

    • Nr 21 Order code 52004277

      Sealing set EPDM,cover F13/17/18/27,10pc

      Consists of: 10x O-ring 70.0x3.0 EPDM.

    • Nr 21 Order code 52008495

      Sealing set EPDM 73.0x3.0, 10 pieces

      Usage: cover.

    • Nr 21 Order code 52028179

      Gasket 67.5x2.9x1.5 VMQ/PTFE, 5 pieces

      Profile gasket cover. Usage: housing F15 stainless steel.

    • Order code 516734-1000

      Plug conn. ISO4400 3-pole, NPTF1/2, PE

      Gasket + screw.

    • Order code 516734-2000

      Plug conn. ISO4400 DIN43650 3+PE Pg11

      Gasket + screw. Usage: FTL50/FTL50H/FTL51/FTL51H.

  • 15
    • Nr 15 Order code 52002447

      Cable entry G1/2, gasket

      Consists of: adapter M20 > G1/2, 316L. Gasket NBR. Blind plug G1/2. Usage: FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85.

    • Nr 15 Order code 52002448

      Cable entry NPT1/2, gasket

      Consists of: adapter M20 > NPT1/2, 316L. Gasket NBR. Plug NPT1/2. Usage: FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85.

    • Nr 15 Order code 52002450

      Cable entry Pg13.5, gasket

      Consists of: adapter M20 > Pg13.5, 304. Gasket NBR. Blind plug Pg13.5. Usage: FTL50/FTL50H/FTL51/FTL51H.

    • Nr 15 Order code 52004133

      Adapter set cable entry NPT1/2

      Usage: housing F16, Polyester.

    • Nr 15 Order code 52004134

      Adapter set cable gland M20

      Usage: housing F16, Polyester.

    • Nr 15 Order code 52004135

      Adapter set cable entry G1/2

      Usage: housing F16, Polyester.

    • Nr 15 Order code 52004136

      Adapter set cable gland Pg13.5

      Screwed cable gland. Usage: housing F16, Polyester, FTL50/FTL50H/FTL51/FTL51H.

    • Nr 15 Order code 52004278

      Cable gland M20, gasket

      Consists of: Cable gland M20. O-ring EPDM. Usage: FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85.

    • Order code 938313-1000

      Cable 4x0.75, case 5080 FlSt

      L=5080mm. Usage: FTL50/FTL50H/FTL51/FTL51H.

  • 25
    • Nr 25 Order code 52007103

      Cover T13 "Terminal" Alu, gasket EPDM

      O-ring EPDM. Usage: terminal compartment, housing T13, aluminium.

  • 30
    • Nr 30 Order code 52002304

      Electronics FEL51 19-253VAC

      Level switch 2-wire. Hardware version 01.00. Software version 01.00.01. Usage: FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71.

    • Nr 30 Order code 52002305

      Electronics FEL52 10-55VDC-PNP

      Level switch 3-wire. Hardware version 01.00. Software version 01.00.01. Usage: FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71.

    • Nr 30 Order code 52002306

      Electronics FEL54 relays DPDT

      19-253VAC/19-55VDC. Hardware version 01.00. Software version 01.00.01. Usage: FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71.

    • Nr 30 Order code 52002307

      Electronics FEL55 11-36VDC

      Level switch 2-wire 4-20mA. Hardware version 01.00. Software version 01.00.01. Usage: FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71.

    • Nr 30 Order code 52002308

      Electronics FEL56 NAMUR

      Level switch 2-wire. Hardware version 01.01. Software version 01.00.01. Usage: FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71.

    • Nr 30 Order code 52002309

      Electronics FEL57 PFM

      Level switch 2-wire. Hardware version 01.01. Software version 01.00.01. Usage: FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71.

    • Nr 30 Order code 52006454

      Electronics FEL58 NAMUR

      Level switch 2-wire + push button. Hardware version 01.02. Software version 01.00.01. Usage: Liquiphant M/S (HT).

    • Nr 30 Order code 71027201

      Electronics FEL50D Density/Concentration

      Hardware version 01.00. Software version 01.00.00. Usage: FTL50/FTL50H/FTL51/FTL51C/FTL51H + FML621. Not for WHG.

    • Nr 30 Order code 71074953

      Electronics FEL50A,PA,HW02.00,SW01.03.00

      PROFIBUS PA. Hardware version 02.00. Software version 01.03.00. Current consumption: 12.5mA+/-1.0mA. Usage: FTL50/FTL50H/ FTL51/FTL51C/FTL51H, FTL70/FTL71.

    • Order code 52005977

      Lubricant "SYNTHESO GLEP1" (tube a 8g)

    • Order code 71127760

      Protection cover F16 housing

      Usage: FDR56, FMI21, FMI51/FMI52, FQR56, FTI51/FTI52/FTI55/FTI56, FTI77, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85, FTM20/FTM21, FTM50/FTM51/FTM52, FTR20, FTW31/FTW32/FTW33.

    • Order code 71040497

      Weather protection cover F13/F17/F18/F27

      Usage: FMI51/FMI52, FTI51/FTI52/FTI55/FTI56, FTI77, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85, FTM20/FTM21, FTM50/FTM51/FTM52.

    • Order code 71067434

      Modification name plate, non Ex

      Blank. To fill in the new order code when a non Ex instrument has been modified. Usage: FMB50/FMB51/FMB52, FMR230/FMR231, FMR240/FMR244/FMR245, FMR250,FMR530/FMR532,FTL50/FTL50H/FTL51/ FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/ FTL85, NMR81, PMC51, PMC71, PMP51/PMP55.

  • 57
    • Nr 57 Order code 71185027

      Sealing ring G3/4, 27x32, FA, 5 pcs.

      Process gasket DIN7603-A. Usage: process connection, FMI51/FMI52, FTI51/FTI52, FTI55, FTL31/FTL33, FTW23/FTW33, FTL50/FTL50H/FTL51, FTL80/FTL81, FMP50/FMP51/FMP56, FMR62.

    • Nr 57 Order code 52014048

      Sealing ring G1, 33x39 FA, 5 pcs.

      Process gasket DIN7603-A. Usage: process connection, FMI51/FMI52, FTI51/FTI52, FTI55, FTL31/FTL33, FTW23/FTW33, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, Sliding sleeve G1 316L (52003663), 316L, 3.1 (52011880), AlloyC22, 3.1 (71118691), FTL51, FTL71, FTL81, AlloyC22 (52003664), FTL51, FTL71.

    • Order code

      Weld-in adapter and correspondig sealings

    • Order code 52001047

      Weld-in adapter RD52, 316L

      Flush mount process connection. Material: 316L. Seal: silicone profile gasket. FDA compliant. Usage: FTL20H, FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL330H/330L.

    • Order code 52006909

      Weld-in adapter RD52, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone profile gasket. FDA compliant. Usage: FTL20H, FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL330H/FTL330L.

    • Order code 52002041

      Weld-in adapter DRD DN50, 316L

      Front-flush mounting of devices with DRD flange. Material: 316L. Seal: PTFE flat. FDA compliant. Usage: FMB50, FMB70, FMD78, FTL50/FTL50H/FTL51/FTL51C/FTL51H, PMC51, PMC71, PMP51/PMP55, PMP75.

    • Order code 52011899

      Weld-in adapter DRD DN50, 316L, 3.1

      Flush mount process connection of devices with DRD flange. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: PTFE flat. FDA compliant. Usage: FMB50, FMB70, FMD78, FTL50/FTL50H/FTL51/FTL51C/FTL51H, PMC51, PMC71, PMP51/PMP55, PMP75.

    • Order code 52001052

      Weld-in adapter G3/4, d=55, 316L

      Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FTL50/FTL50H, FTL80. Usage: TMR35.

    • Order code 52011897

      Weld-in adapter G3/4, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FTL50/FTL50H, FTL80. Usage: TMR35.

    • Order code 71093129

      Weld-in adapter G1, d=53, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material Seal: silicone O-ring FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35.

    • Order code 52001051

      Weld-in adapter G1, d=60, 316L

      Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35. Usage: TM401/TM411, TMR35.

    • Order code 52011896

      Weld-in adapter G1, d=60, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35. Usage: TM401/TM411, TMR35.

    • Order code 52001221

      Weld-in adapter G1, adjustable, 316L

      Flush mount process connection. Material: 316L. Liquiphant is adjustable. Seal: silicone profile gasket. FDA, EHEDG, 3-A compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL330H/330L.

    • Order code 52011898

      Weld-in adapter G1, adjustable,316L, 3.1

      Flush mount process connection. Material: 316L. Liquiphant is adjustable. Inspection cert. EN10204-3.1 material. Seal: silicone profile gasket. FDA, EHEDG, 3-A compliant. Usage: FTL20/FTL20H, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL31/FTL33, FTL80/FTL81, FTL330H/FTL330L.

    • Order code 52014473

      O-ring 21.89x2.62 VMQ, FDA, 5 pcs.

      Material: silicone VMQ 70. Usage: weld-in adapter G3/4, 316L (52001052) flush mount, 316L, 3.1 (52011897) flush mount, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81.

    • Order code 71086100

      O-ring 21.89x2.62 VMQ, FDA, USP, 3pcs.

      Material: silicone VMQ 70. USP Class VI. Usage: weld-in adapter G3/4, 316L (52001052) flush mount, 316L, 3.1 (52011897) flush mount, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81.

    • Order code 71140670

      O-ring 21.89x2.62 EPDM, FDA, USP, 3 pcs.

      Material: EPDM 70. USP Class VI, 3-A. Usage: weld-in adapter G3/4, 316L (52001052) flush mount, 316L, 3.1 (52011897) flush mount, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81.

    • Order code 52014472

      O-ring 28.17x3.53 VMQ, FDA, 5 pcs.

      Material: silicone VMQ 70. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 71086102

      O-ring 28.17x3.53 VMQ, FDA, USP, 3 pcs.

      Material: silicone VMQ. USP Class VI. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 71140668

      O-ring 28.17x3.53 EPDM, FDA, USP, 3 pcs.

      Material: EPDM 70. USP Class VI, 3-A. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mounted, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 52014424

      Profile gasket 29x36x3.7, FDA, 5 pcs.

      Material: silicone VMQ. Usage: Process connect. G1 flush mount, Weld-in adapter G1, 316L, adjustable (52001221), Weld-in adapter G1, 316L, 3.1, adjustable (52011898), FTL31/FTL33, FTL80/FTL81, FTL50/FTL50H/FTL51/FTL51H, Weld-in adapter Rd52, 316L, adjustable, (52001047), 316L, 3.1, adjustable, (52006909), FTL33, FTL50/FTL50H/FTL51/FTL51H.

    • Order code 71075662

      Profile gasket 29x36x3.7, FDA, USP, 5pcs

      Material: silicone VMQ. USP Class VI, FDA. Usage: Process connect. G1 flush mount, Weld-in adapter G1, 316L, adjustable (52001221), Weld-in adapter G1, 316L, 3.1, adjustable (52011898), FTL31/FTL33, FTL80/FTL81, FTL50/FTL50H/FTL51/FTL51H, Weld-in adapter Rd52, 316L, adjustable, (52001047), 316L, 3.1, adjustable, (52006909), FTL33, FTL50/FTL50H/FTL51/FTL51H.
